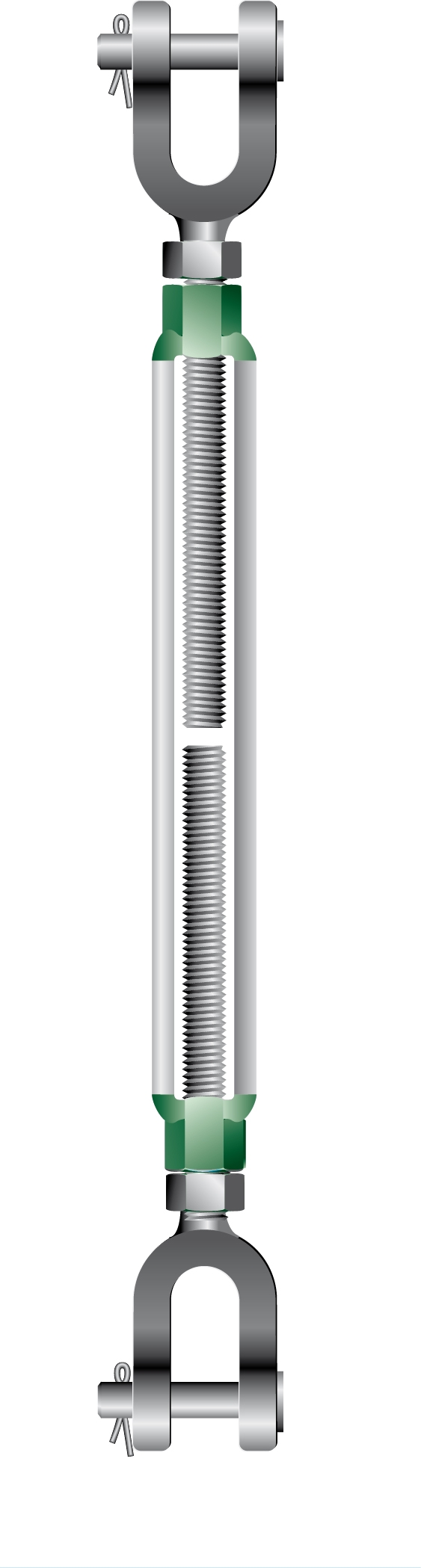

Green Pin® turnbuckles Jaw – Jaw with cotter pin

generally to ASTM F1145-92

• Material : drop forged high tensile steel SAE 1035 or 1045

• Safety factor : MBL equals 5 x WLL

• Standard : generally to ASTM F1145-92 formerly U.S. Federal Specification FF-T-791b

• Finish : hot dipped galvanized

• Certification : a works certificate, proof load test certificate and/or EC Declaration of Conformity can be supplied upon request

working	diameter	take	length	length	length	opening	length	diameter	thickness	diameter	weight
load	thread	up	closed	open	closed	jaw	inside	pin	jaw eye	jaw eye	each
limit			position	position	position

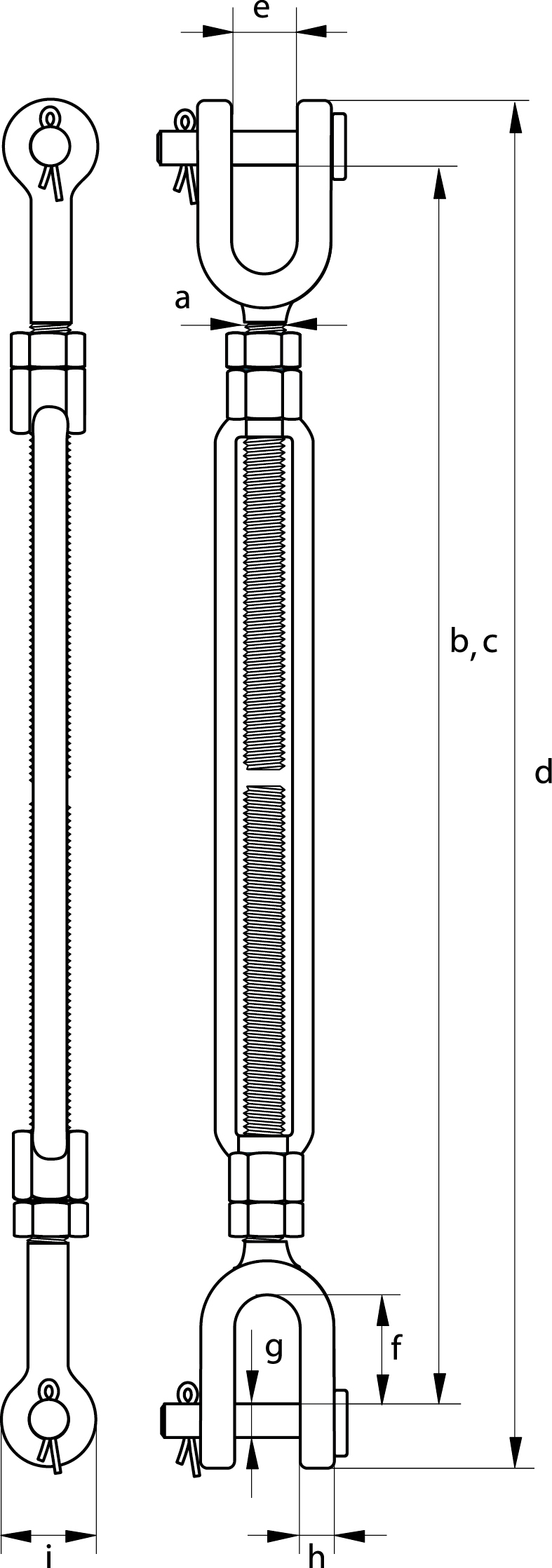

	a		b	c	d	e	f	g	h	i
t	inch	inch	mm	mm	mm	mm	mm	mm	mm	mm	kg
2,36	3/4	6	368	487	438	24	38	16	16	41	2,68
2,36	3/4	9	442	639	512	24	38	16	16	41	3,03
2,36	3/4	12	518	791	588	24	38	16	16	41	3,29
2,36	3/4	18	671	1095	740	24	38	16	16	41	3,65
3,27	7/8	12	559	825	636	27	42	19	19	48	4,93
3,27	7/8	18	712	1131	789	27	42	19	19	48	5,95
4,54	1	6	447	555	532	30	50	22	20	55	5,21
4,54	1	12	598	859	683	30	50	22	20	55	6,96
4,54	1	18	750	1164	835	30	50	22	20	55	8,4
4,54	1	24	902	1469	987	30	50	22	20	55	8,9
6,9	1 1/4	12	641	916	748	44	71	29	26	68	11,9
6,9	1 1/4	18	793	1218	900	44	71	29	26	68	13,6
6,9	1 1/4	24	961	1538	1069	44	71	29	26	68	14,2
9,71	1 1/2	12	675	941	806	52	71	35	28	80	16,9
9,71	1 1/2	18	825	1244	956	52	71	35	28	80	19,3
9,71	1 1/2	24	980	1550	1111	52	71	35	28	80	20,7
12,7	1 3/4	18	933	1310	1095	59	86	42	33	90	25
12,7	1 3/4	24	1084	1614	1246	59	86	42	33	90	28,7
16,8	2	24	1153	1672	1338	63	93	51	41	108	45,4
27,2	2 1/2	24	1254	1830	1479	75	114	57	41	143	88
34	2 3/4	24	1305	1878	1561	90	110	70	41	158	98
